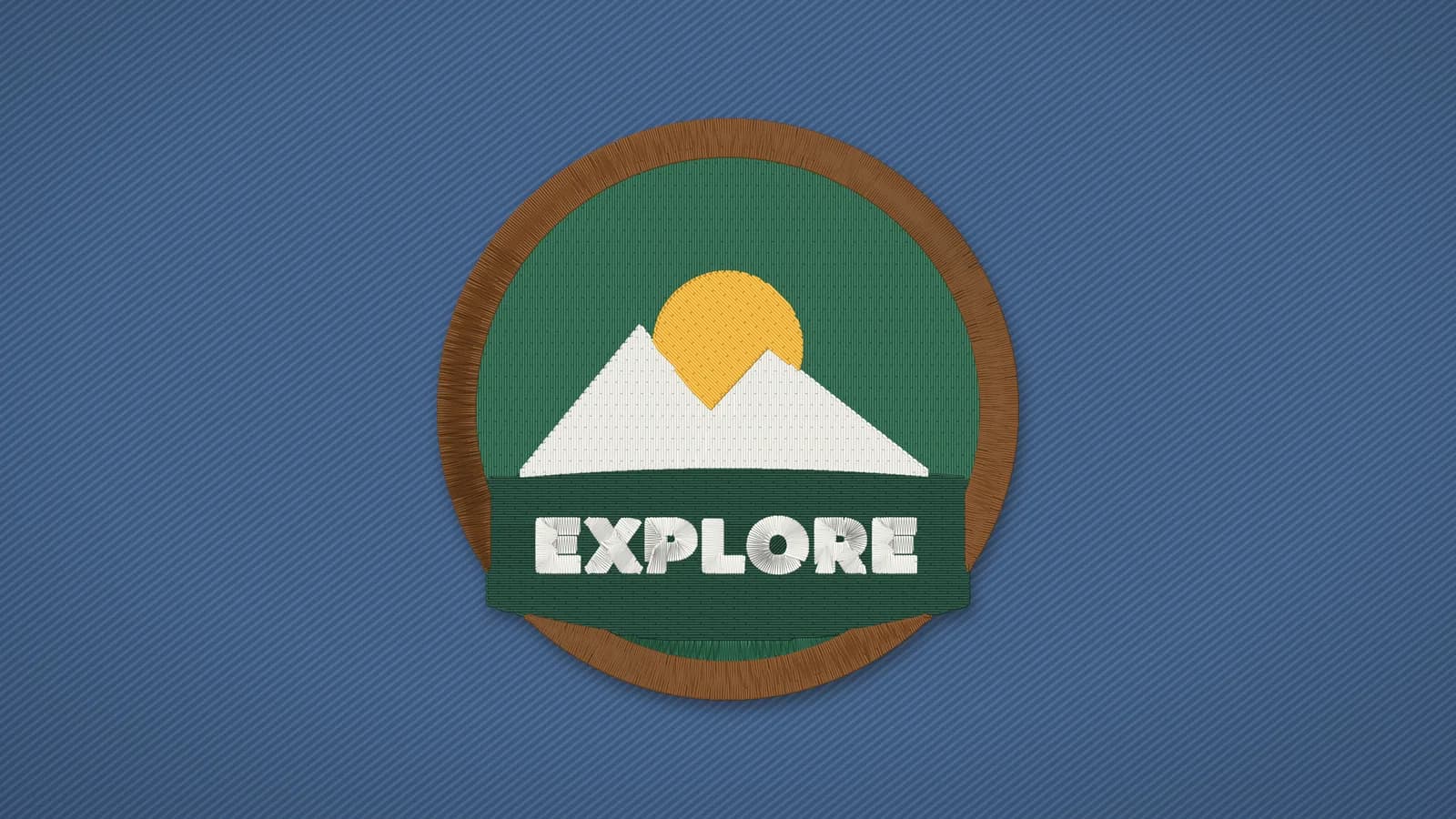

An embroidered patch is a small, self-contained design: a solid area of stitches with a satin border around the edge, sewn on a firm fabric, cut out and finished with a backing. Once you have the file, you can make one patch or a hundred on a home machine.
The design matters more than the machine. A patch needs full coverage, so no fabric shows, and a border wide enough to finish cleanly. The patch embroidery file page turns your artwork into exactly that. This guide covers the rest.
What you need
| Item | Good choices | Notes |
|---|---|---|
| Base fabric | Polyester or cotton twill; felt | Twill is the classic patch fabric. Felt is cheap, stiff and doesn't fray, so it's a good place to start |
| Stabilizer | Firm cut-away or heavy tear-away | The patch has to stay flat after trimming |
| Thread | 40-weight polyester or rayon embroidery thread | Polyester stands up better to washing and heat |
| Backing | Heat-activated adhesive sheet, hook-and-loop, or none for sew-on | Added after stitching |
| Tools | Small sharp scissors; a hot knife for polyester twill; seam sealant | A hot knife melts and seals synthetic edges as it cuts |
Choose a fabric color close to the patch's background color. If a stitch misses or the border shifts slightly, it won't show.
Design the patch for full coverage
A patch looks finished when the whole surface is thread. Build that into the artwork:
- Draw the patch shape. Put a filled circle, shield or rectangle behind the design, in the background color you want. It becomes a tatami fill, and the details sew on top.
- Add a border. An outline ring around the shape, about 3–4 mm wide at the final size. It becomes a satin column, the classic patch edge, and it's the line you cut along.
- Keep the outline simple. Circles, ovals, shields and rounded rectangles are easy to cut. Tight inside corners are hard to finish.
- Keep text bold. Lettering on a 3 in patch needs to be at least 5 mm tall to read.
Fills sew first and the satin border sews over their edge, which hides any slight unevenness where the fill stops. The satin vs fill guide explains why the widths matter.
Try it with your own design
Sign up free, upload an image and get a stitch preview in under a minute.
Drop your image here
PNG, JPG, WebP or SVG · stays on your device
Patch sizes and hoops
| Patch | Size | Hoop |
|---|---|---|
| Small | 2 in (50 mm) | 4×4; several fit in a 5×7 |
| Standard | 3 in (75 mm) | 4×4 |
| Large | 4 in (100 mm) | 5×7, since 100 mm fills a 4×4 field edge to edge |
| Back patch | 10–12 in (250–300 mm) | A large-field machine; long, narrow designs fit 8×12 |
Stitch count climbs quickly with size, because every part of the surface is filled. With this digitizer's density, a 3 in round patch comes to roughly 6,000–7,000 stitches and a 4 in one to about 11,000. The stitch count calculator estimates any size. To make several small patches at once, place copies side by side in one image and digitize them together.
Stitching the patch
- Digitize the artwork at the final size in the digitizer with the woven fabric preset. Areas that match the image background are left unstitched by default, so switch them on in the color list if the patch needs them.
- Check the preview and the design check. Every part of the patch should be covered.
- Hoop the twill or felt with the stabilizer, smooth and drum-tight. Patches are dense, so don't skimp on support.
- Stitch the patch. The fills sew first, and the satin details and border sew over them.
- Unhoop, remove or trim the stabilizer close to the stitches, and press the patch flat from the back.
Stitch one test patch before a batch. It shows whether the border fully covers the edge and whether fabric shows through the fill, which is easier to fix in the artwork than after cutting fifty.
Cutting, sealing and backing
Cut around the border as close as you can without nicking the satin stitches; small curved scissors make it easier. Then seal the raw edge:
- Polyester twill: run a hot knife or heat-cutting tool along the edge. It melts the fibers so they can't fray. Test on a scrap first, and keep the tip off the satin.
- Cotton twill: cotton doesn't melt, so seal the edge with a seam sealant or fabric glue.
- Felt: it doesn't fray, so a clean scissor cut is enough.
Commercial patches often have a merrowed edge, a thick overlocked border sewn on a special machine after cutting. On a home machine, the satin border does the same job. Then choose a backing:
- Sew-on: no backing needed. Stitch the patch on by hand or machine just inside the border. It's the most durable option, and the right one for stretchy fabric or items washed often.
- Iron-on: fuse a heat-activated adhesive sheet to the back, trim it to the patch shape, then press the patch onto the item. Follow the adhesive maker's heat and time settings.
- Hook-and-loop: sew the hook side to the patch and the loop side to the bag or jacket, so the patch can be swapped.
